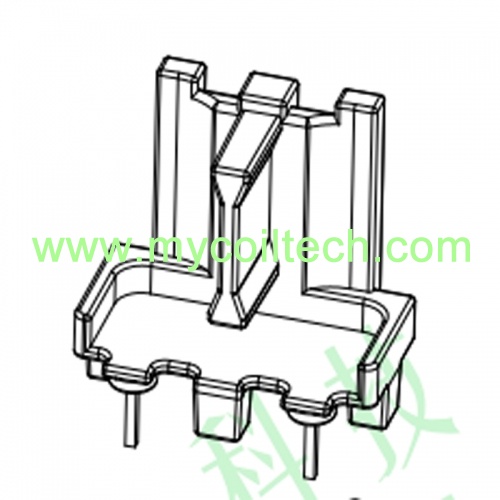

2+2 pins SQ19 inductor base, horizontal ET coil former for common mode choke inductor. Size=24.0mmX14.3mmX12.5mm. Parallel Distance=10.0mm. Pin pitch=19.0mm. PET material base. We are professional bobbin factory, we have made different series bobbin moldings, samples are available.
brand:
MCTitem no.:
MCT-SQ1903 (H2+2P)shipping port:
Shanghaipayment:
T/T in advanceHot selling common mode choke base, SQ19 bobbin horizontal 2+2 pins, samples can be sent for testing.
Product Specification
For more details, welcome to contact us:
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily
Vertical High Current Inductor SQ23 Bobbin
Common mode choke inductor. 2+2 pins vertical SQ23 coil former. Bobbin Size=28.0mmX14.0mmX25.0mm. Parallel Distance=10.0mm. Pin pitch=18.8mm. Flat wire winding common mode choke coils. We are professional transformer bobbin factory, our bobbins mainly used in high frequency line filters, smoothing choke coil, drive transformer, switching power transformers and chokes.
SQ23 Common Mode Choke Inductor Bobbin
High current SQ23 inductor. 2+2 pins SQ23 horizontal coil former. Bobbin Size=25.5mmX24.0mmX11.75mm. Parallel Distance=22.5mm. Pin pitch=20.0mm. Flat wire winding common mode choke coils. We are professional transformer bobbin factory, our bobbins mainly used in high frequency line filters, smoothing choke coil, drive transformer, switching power transformers and chokes.
Base For Plastic Transformer Bobbins
Toroidal core phenolic base. We manufacture final inductors for customers. Base size=11.5mmX10.5mmX3.8mm. Pin pitch1=2.50. Pin pitch2=5.50. Parallel distance=5.0mm. We supply matched magnetic cores. Samples are available. Plastic inductor base.
Common Mode Choke Ferrite Core Inductor Base With DIP Base
2+2 Pins Dip Base,LCP Material,UL REC:94V-0 Pin Pitch=14mm Parallel Distance=7mm Inductor base size=17mmX10mmX13.5mm
EF20 Bobbin For Battery Charger Transformer
Lead wire slot bobbin supply, Horizontal EF20 winding bobbin. Bobbin Size=20.5mmX20.0mmX16.2mm. Pin pitch=3.8mm. Parallel Distance=15.2mm. DIP transformer bobbin. We can make new tooling to meet customer's design.
6+6 Hole Base for Power Inductor
6+6 hole choke coil base. Manufacture final inductors and coils. Base Size=27.95mmX18.81mmX12.0mm. With small size, low resistance, high current frequency, low radiation noise, welcome custom made electronic components and OEM service.
ET24 Common Mode Choke Horizontal Base
2+2 pins horizontal base ET24. Supply matched ET24 multi sections coil former. Base size=24.0mmX24.0mmX16.0mm. Pin pitch=15.0, Parallel distance=21.0mm. Our transformers widely used in electrical equipments, medical equipments, computers, switching power supplies, communication equipments, power components, vehicle electronic equipments.
EE42 Switching Transformer Horizontal Bobbin
EE42/15 ferrite core, 8+8pin horizontal EE42 transformer bobbin. Bobbin Size=40.7mmX39.6mmX32.1mm. Parallel Distance=36.0mm.Pin pitch=5.0mm. EE42 electronic transformer factory, with high transmission power and low temperature rise,welcome customzied wound components. PBT material EE42 coil former.
3+3 Pin Bobbin Base used for Coil Inductor
Inductor core base. 3+3 pin square base. Base Size=20.4mmX11.7mmX11.1mm. We manufacture final inductors to meet customer requirements. Inductor features: such as low cost/high efficiency, low magnetic leakage, good control on noise due to the toriodal constructure, etc.
EF20 Power Supply Transformer Horizontal Bobbin
EF20 horizontal coil former, 5+5 pins though hole EF20 bobbin. Bobbin Size=20.25mmX20.0mmX17.8mm. Pin pitch=3.8mm, Parallel distance=15.0mm. We are bobbin EF20 bobbin factory, supply EF20 soft cores PC40 PC44 PC95 material.
RM6 Vertical Bobbin for Household Ferrite Core,with 4+4 Pin Double Slots
4+4 Pins Vertical Bobbin. Double Slots Bobbin. Bobbin Size=20.9mmX12.3mmX8.9mm. Phenolic Material, DIP transformer Bobbin. UL REC:94V-0
RM7 Transformer Clips With Pin for Ferrite Cores
RM7 Transformer Clips With Pin sK70.4T Material, UL REC:94V-0 Clip Size=11.5mmX4.4mmX3.7mm
