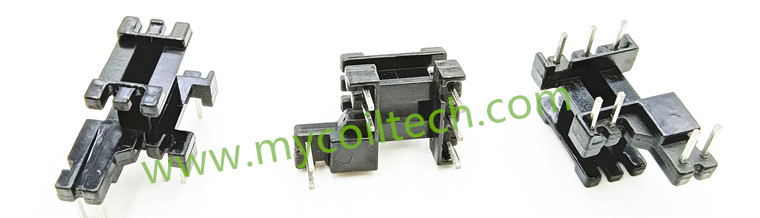

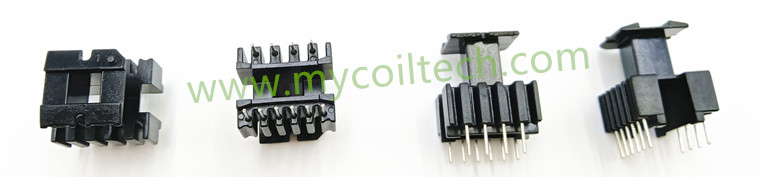

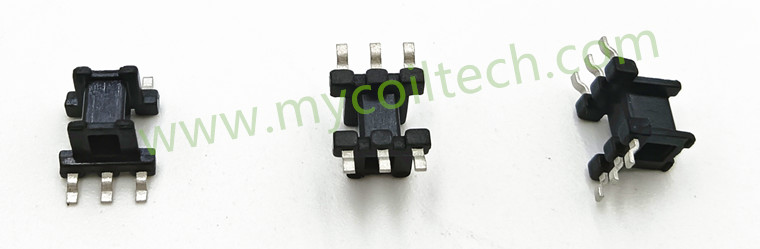

EE-Type Bobbin

1. Structural Features

The ferrite magnetic core of an EE-Type Bobbin is shaped like two symmetrical "E" letters combined, with the width of the central leg usually equal to that of the two side legs. This symmetrical structural design ensures a more uniform magnetic field distribution when winding the coil, which helps enhance the performance of the transformer. The pins of the EE-Type Bobbin are distributed on both sides of the bobbin, and their quantity and spacing vary according to different models and application requirements. Common sizes include EE5, EE8, EE13, EE19, etc. EE-Type Bobbins of different sizes are suitable for transformers of different power levels. For example, EE5 is used for low-power transformers and often applied in auxiliary power supplies for small electronic devices, while EE19 can be used in higher-power industrial power transformers.

2. Application Scenarios

EE-Type Bobbins are widely used in various types of transformers, including low-frequency transformers and high-frequency transformers. In the low-frequency field (e.g., power-frequency transformers), EE-Type Bobbins are often used in power transmission and distribution systems to convert high voltage into low voltage suitable for household and industrial use. In the high-frequency field (e.g., EE19 switching power supply transformers), EE-Type Bobbins can achieve efficient electrical energy conversion under high-frequency operating conditions, providing stable power for electronic devices. Additionally, EE-Type Bobbins are also applied in fields such as audio transformers and pulse transformers to meet the performance requirements of transformers in different applications.

3. Performance Advantages

The symmetrical structure of the EE-Type Bobbin results in uniform magnetic field distribution and low leakage inductance, which can improve the efficiency and power factor of the transformer. Therefore, it is also widely used in bobbins for EE05 LED driver transformer bobbin. Meanwhile, due to its simple structure, relatively mature manufacturing process, and low cost, it has high cost-effectiveness in the market. Besides, EE-Type Bobbins have high versatility—products with various sizes and pin configurations are easily available, which facilitates engineers' design and application work.

4.Contact us today to explore bulk orders or request technical specifications.
